TCLB-420 大型立式全自动包装机

技术特点：

1．采用彩色触摸屏和稳定可靠的双轴高精度输出的PLC控制、制袋、计量、充填、封合、打码、切袋一次性完成。

2．气路控制和电路控制电箱独立分离，噪音小，电路更稳定。

3．采用双皮带伺服拉膜：拉膜阻力少，包装袋成型好，更美观，皮带不易磨损。

4．采用伺服控制,实现高精度定位，尺寸准确。

5．采用外置式放膜机构，包装膜安装更简单、更容易。

6．包装袋的偏差调整只需在触摸屏上调整即可，操作简单。

7．整机采用封闭式机构，有效防止粉尘进入机器内部。

Technical characteristics

1. PLC control with stable￡?reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.

2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.

3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.

4. Double servo control, high precision orientation, size more nicety.

5. External film releasing mechanism: simpler and easier installation of packing film.

6. Adjustment of bag deviation just needed to be controled by the touch screen. Operation is very simple .

7. Close down type mechanism , defending powder into inside of machine.

配合多种计量装置，可包装不同种类的物料。

Application

Suitable for many kinds of measuring equipment,and package different kinds of

可适合的配套The machine can be equipped with following devices

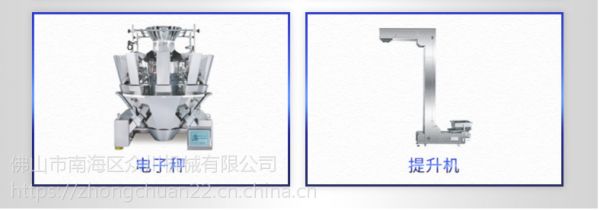

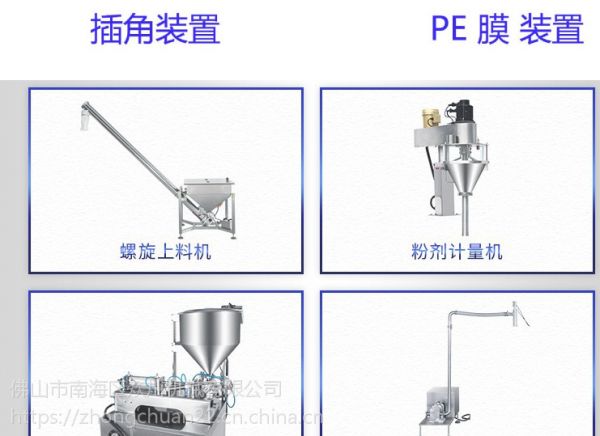

电脑组合秤、半自动投料装置、螺旋式粉剂计量机、量杯式计量机、液体灌装计量机

Electronic weighing system,semi automatic feeding device,spiral type powder measuring device and cup measuring device.

技术参数（Technical parameters）:

机型（Type）TCLB-420制袋长度(Bag length)80-300mm(L)制袋宽度(Bag width)80-200mm(W)薄膜宽度(Max width of roll film)420mm包装速度(Packing speed)25-40bags/min计量范围(Measuring range)2000ml(Max)气压(Air consumption)0.65Mpa耗气量(Gas consumption)0.4m3/min电压（Power voltage）220VAC/50HZ功率（Power ）4Kw外型尺寸（Dimension）(L)1217×(W)1015×(H)1343mm机器重量（Deadwight of machine）500KG
